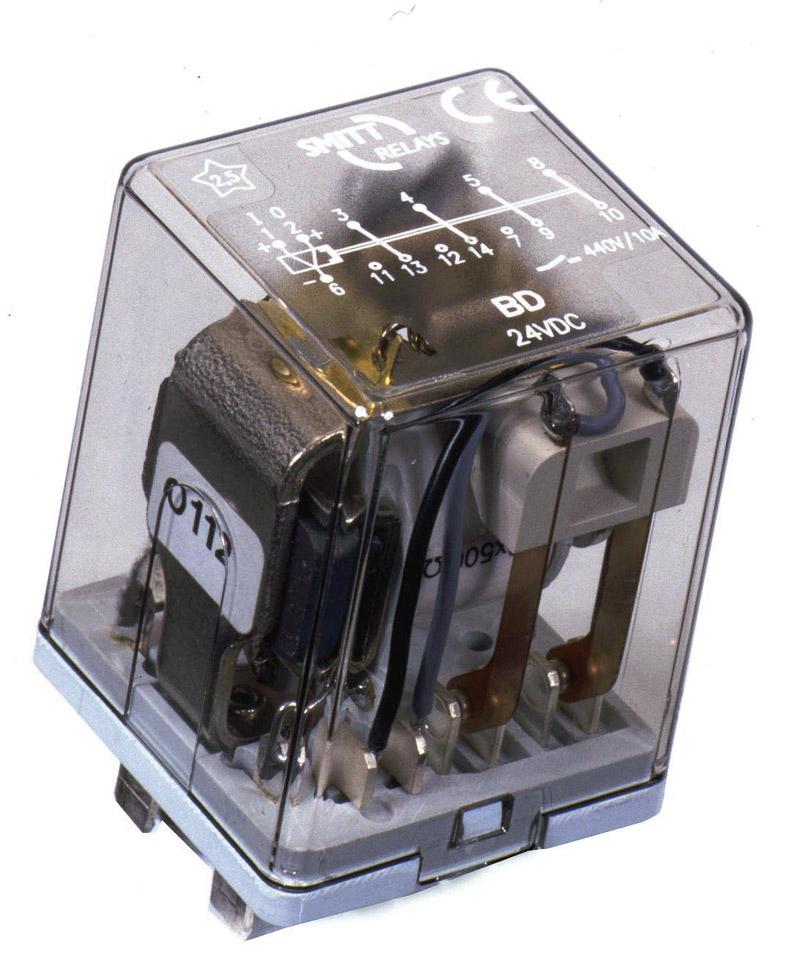

BD Relays Bi-stable Latching Plug-in Relay
Plug-in industrial bistable power relay with three change-over contacts and one normally closed contact. The contacts remain in the last powered position. Bistable by means of a permanent magnet. Optionally equipped with magnetic arc blow-out and double make/double break contacts for high breaking capacity and long contact life.
- Latching (bistable) relay
- Compact plug-in design
- 2 combined coils
- 3 C/O contacts and 1 N/C contact
- Flat, square silver plated relay pins for excellent socket connection
- Wide range of sockets for panel, rack or 35 mm rail
- Integrated snap-lock
- High DC breaking capacity
- Solve-All relay application concept
- Optional positive mechanical keying relay to socket
- Optional mechanical on/off position indicator
- Optional back EMF suppression diode (DC versions)
- Flexibility by many options
Download Brochure
